The Engineering Challenge: Mitigating Pressure Drop and Fouling in Gas Scrubbing Systems

Why System-Level Engineering Matters More Than Product Parameters

In environmental engineering and chemical processing, the selection of Tower Internals often determines the operational stability of the entire plant. A common operational bottleneck in Gas Scrubbing, VOC Treatment, and SO₂ Scrubbing systems is the accumulation of solid deposits or excessive Pressure Drop, which directly limits Distillation Efficiency and increases fan energy consumption.

Generic packing selection based solely on price often leads to early flooding, liquid maldistribution, and unplanned downtime. Process Optimization requires a holistic view of the scrubbing system.

Solution Logic: Why Plastic Teller Rosette Ring Packing is Selected for Scrubbers

Structural Advantages in Mass Transfer Solutions

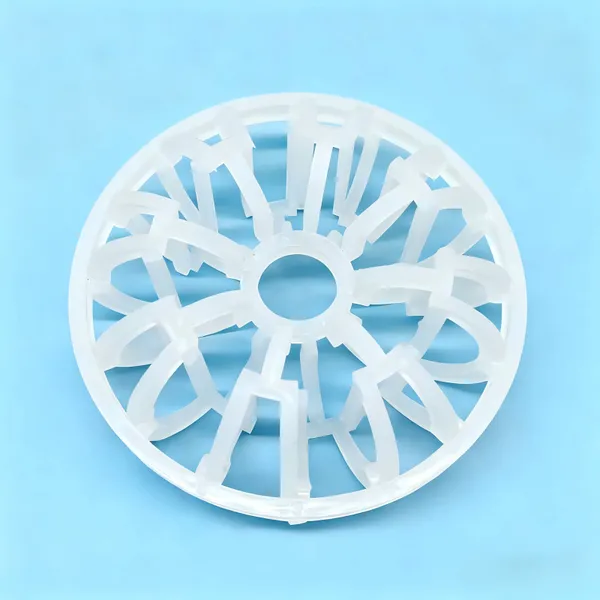

For corrosive and fouling-prone environments (such as HCl Scrubbers and Ammonia Scrubbers), DAIER Chemical Packing provides Plastic Teller Rosette Ring Packing. Its distinct open geometry delivers a low Pressure Drop profile while maintaining a high Void Ratio for gas-liquid contact.

Unlike random packing with dense structures, the Teller Rosette Ring reduces channeling effects and improves liquid distribution across the packing bed. This is a critical factor for Process Optimization in Waste Gas Treatment facilities.

Key Engineering Constraints: Material Integrity and System Compatibility

The DAIER Standard for Material Verification

In a complete scrubbing system, plastic packing must be supported by robust tower internals. Whether using Support Plates, Support Grids, or Liquid Distributors, structural integrity is non-negotiable.

When metallic components are integrated into your Tower Internal Engineering design, the DAIER Standard strictly mandates that SS316L stainless steel must have a Mo (Molybdenum) content ≥ 2.0%. This is the only reliable defense against chloride pitting and stress corrosion cracking in harsh chemical process systems.

DAIER Standard Material Baseline (For Integration Validation):

• SS316L Components: Mo (Molybdenum) content ≥ 2.0% (Mandatory for all metallic internal components).

• Plastic Packing Media: Virgin PP, PE, PVDF, or PTFE (No recycled materials allowed, ensuring thermal and chemical resistance boundaries are met).

Troubleshooting and Operational Optimization Framework

Common Scrubber Issues and Engineering Diagnostics

System operators frequently face the following issues. The DAIER engineering approach addresses them at the design and retrofit stage:

1. Symptom: Rapid increase in Pressure Drop.

• Diagnostic: Check for scaling or packing deformation.

• Solution: Evaluate the Void Ratio of the Teller Rosette Ring. Its open structure allows solids to pass through without blocking the gas path.

2. Symptom: Inconsistent scrubbing efficiency (drop in Distillation Efficiency or absorption rate).

• Diagnostic: Verify liquid distribution uniformity.

• Solution: Combine Teller Rosette Ring packing with properly designed DAIER Liquid Distributors and Collector Redistributors.

3. Symptom: Material failure (corrosion or melting).

• Diagnostic: Verify the operating temperature and chemical concentration.

• Solution: Upgrade plastic material (e.g., from PP to PVDF) or verify SS316L Mo content for metal components.

Engineering Review Request: Let Data Drive the Selection

Send Operating Conditions, Not Generic Inquiries

Pingxiang Daier Separation Tech operates as a technical partner for chemical process systems, not a commodity supplier. We do not provide price quotes without parameters.

To receive a packing selection and preliminary HETP calculation report, please provide your operating conditions:

• Tower diameter and packed height

• Gas flow rate, temperature, and pressure

• Media composition and corrosion profile

• Allowable Pressure Drop budget

Our engineering team, based in Pingxiang, Jiangxi, China, will return an engineering review tailored to your Waste Gas Treatment or Scrubbing system.
